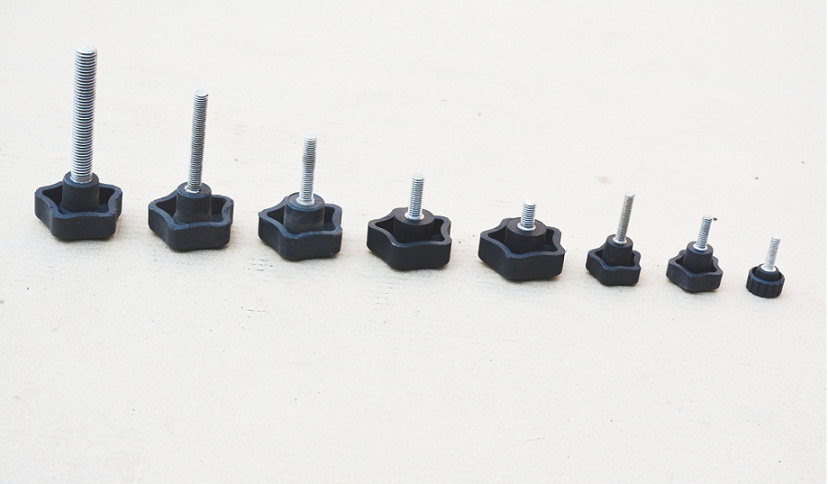

KNOB- POLYMIDE
These Polyamide Knobs provide an effective grip to the operator while tightening and therefore are suitable for axial locking.
MODEL NO | d | D | H |
---|---|---|---|
SKS-20 / 15 | M5 | 20 | 10 16 20 25 30 40 |
SKS-20 | M6 | 20 | 10 16 20 25 30 40 60 70 |
MODEL NO | d | D | H |
---|---|---|---|
SKS-30 | M6 | 30 | 10 16 20 25 30 35 40 60 70 |
SKS-50 | M10 M12 | 50 | 16 20 25 30 40 60 70 80 |
SKS-65 | M10 M12 | 16 20 25 30 40 60 70 80 |
