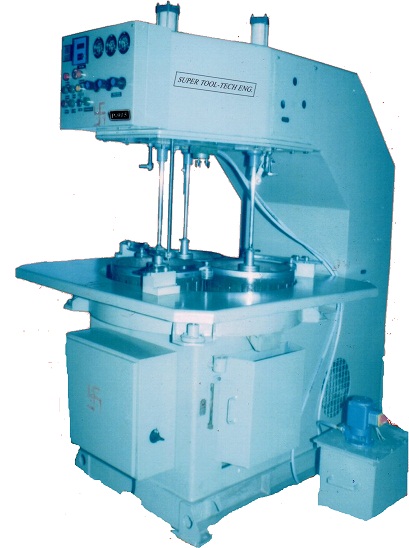

MACHINE TYPE- PL-515 / PL-915
STANDARD ACCESSORIES
(With basic machine) include Serrated upper & lower lap plate (Copper or C.I.)
Pneumatic system with filter, lubricator, regulator, complete with auto operated direction control with variable pressure regulator for upper lap plate.
Abrasive system tank & pump with manifold piping & flow control. All above are fitted with machine tool.
TECHNICAL SPECIFICATION
| PL-515 | PL-915 | |
|---|---|---|
| LOWER LAP PLATE O.D.mm | 515 | 915 |
| LAP PLATE FACE WIDTH mm | 225 | 407 |
| MAX.DISTANCE BETWEEN UPPER & LOWER LAP PLATE | 300 | 300 |
| NUMBER OF WORK CARRIERS | 3 | 3 |
| MAX. WORK PIECE DIA.mm | 90 | 160 |
| MAX. WORK PIECE THK. mm | 65 | 65 |
| MINIMUM WORK PIECE THK.mm | 1.00 | 1.00 |
| LOWER LAP PLATE R.P.M. APROX | 38 | |
| UPPER LAP PLATE R.P.M | Frictionally | Frictionally |
| UPER LAP PLATE PNUMATIC PRESSURE TRVELLING | 2.0 Kg/cm2 | 2 Kg/cm2 |
| LOWER LAP PLATE DRIVE MOTER H.P. | 2 H.P. A.C | 3 H.P. AC. |
| COOLENT PUMP MOTORS (KW) | 0.11 | 0.11 |
| WORK HOLDER RPM | 50 | 50 |
| ELECTRICAL POWER | 440V/3Ph/50HZ | 440V/3Ph/50HZ |
| MACHINE LENGTH mm | 900 | 1600 |
| MACHINE WIDTH mm | 500 | 870 |
| MACHINE HEIGHT mm | 1500 | 1760 |
| NET WEIGHT Kgs | 1600 | 2700 |
| GROSS WEIGHT APROX Kg | 1700 | 2800 |
OPTIONAL EQUIPMENT :- Lap plate (Serrated or unserrated C.I.) or copper plate.Straight edge.,Comparator stand With 0.01 dial gauge.
